Description

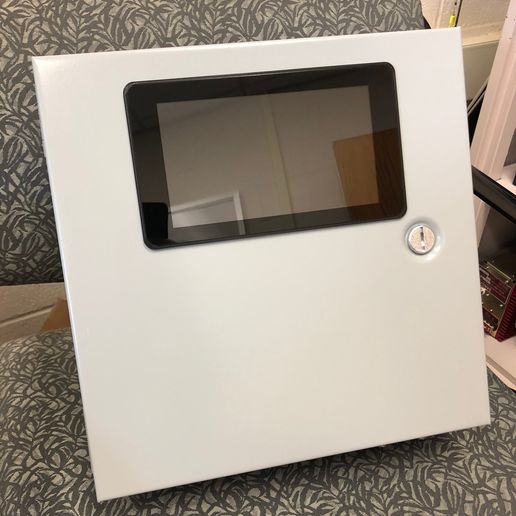

I needed a way to mount a Raspberry Pi 7" Touchscreen Display to an enclosure door. This design allows mounting to a standard metal enclosure with .065" metal (thicker or thinner will work too, or modify as needed). This requires a 7.375" x 4.3" minimum opening cut in to the enclosure. A wire path is included to keep the wire and ribbon cable nicely near the hinge side of the enclosure. Final height from the face of the enclosure is ~.125". **Note: If the screen image is upside down (rota
