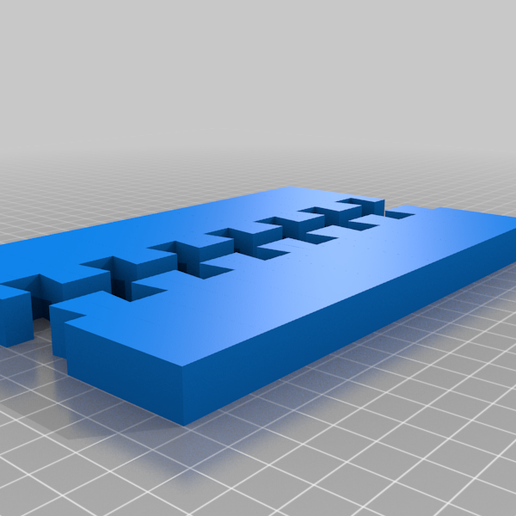

Dovetail Router Jig 7in.

A basic dovetail jig/router template, for use with top bearing flush trim bits. The dimensions for each piece is 2in. wide, 7in. long, and 1/2in. thick. Each dovetail is 1/2in. wide, and 1/2in. deep, spaced 1in. apart. Increments are marked at 1, 1/2, and 1/4in. I typically use template tape to secure my router jigs to the material. 20% infill recommended for rigidity, and you may want to consider thicker outside walls, where the bearing will ride on the jig.
